Vertical Lifts – Aluminium Alloy Lift Platforms & Stock Pickers
High-performance vertical lifts designed for safe, efficient, and reliable material handling. Our aluminium alloy lift platforms and stock pickers deliver superior access solutions for warehouses, factories, logistics centers, and commercial facilities worldwide.

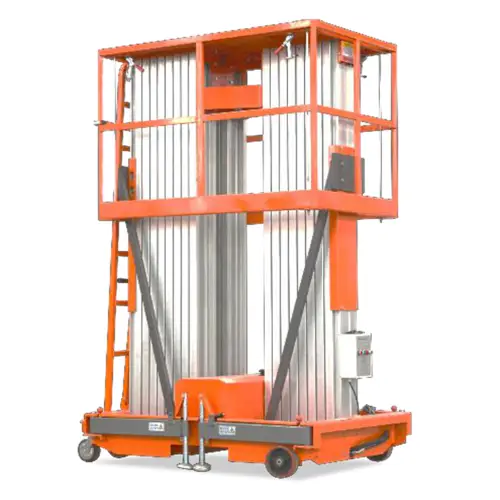

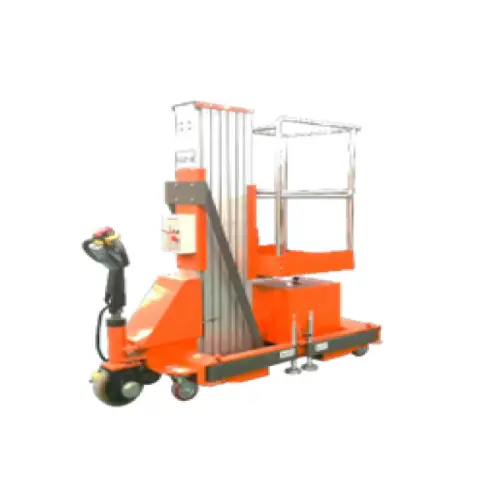

Aluminium Aerial Work Platform
Product Introduction
Aluminium aerial work platform is a newly designed lifting solution manufactured using high-strength aluminium alloy structure. It is lightweight, durable, corrosion-resistant, and engineered for safe, stable elevation performance across professional indoor and outdoor applications.
Applications
This lift is ideal for installation, maintenance, cleaning, inspection, and overhead work in factories, warehouses, hotels, airports, stations, exhibition halls, shopping centers, and other facilities requiring reliable vertical access equipment.
Key Features
- Lightweight machine structure for easy mobility
- Flexible operation in confined spaces
- High-strength aluminum lifting mechanism
- Horizontal level indicator for safe positioning
- High-pressure steel cylinder with strong compression resistance
- Double-chain transmission for improved safety and stability
- Compact structure for convenient transport and storage
Technical Specifications
| Model | Rated Capacity | Lifting Height | Overall Dimensions | Weight |
|---|---|---|---|---|
| SHJ1-6 | 100 kg | 6 m | 1100×830×1900 | 220 kg |
| SHJ1-8 | 100 kg | 8 m | 1100×830×1900 | 260 kg |
| SHJ1-10 | 100 kg | 10 m | 1200×950×2100 | 360 kg |
| SHJ2-8 | 200 kg | 8 m | 1500×900×1900 | 430 kg |
| SHJ2-10 | 200 kg | 10 m | 1500×900×2100 | 560 kg |
| SHJ2-12 | 200 kg | 12 m | 1500×900×2350 | 580 kg |
| SHJ2-14 | 200 kg | 14 m | 1600×1000×2600 | 620 kg |
| SHJ2-16 | 200 kg | 16 m | 1800×1000×3000 | 820 kg |
Power Supply: Single-phase AC or Battery

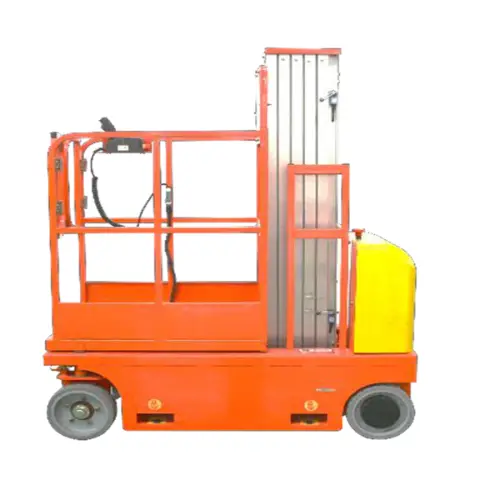

Stock Picker
Product Introduction
Stock Picker is available in fully electric and semi-electric configurations designed for efficient and safe warehouse order picking operations. It provides smooth lifting performance, stable structure, and reliable maneuverability for indoor logistics and material handling applications.
The unit features a spacious operating platform and compact chassis design, allowing operators to work comfortably at height while maintaining excellent mobility in narrow aisles and confined storage environments.
Key Features
- Advanced international control system for stable performance
- Drive motor with automatic braking function
- Low-battery protection limiting lift operation
- Overload protection system
- Emergency descent safety valve
- Fault self-diagnosis system
- Emergency stop and emergency lowering buttons
- Charging indicator and voltage display
- Double brake disc system for safety
- Maintenance safety support device
Advantages
- Heavy-duty hydraulic power system
- One-piece forged structural components
- International certifications including CE and ABS
- 200% load testing for maximum safety assurance
Technical Specifications
| Specification | ZDYT3-3.5T | ZDYT3-4.0T | ZDYT3-4.5T |
|---|---|---|---|
| Rated Load | 300 kg | 300 kg | 300 kg |
| Workers | 1 | 1 | 1 |
| Working Height | 5.50 m | 6.00 m | 6.50 m |
| Platform Height | 3.50 m | 4.00 m | 4.50 m |
| Overall Length | 1.56 m | 1.56 m | 1.56 m |
| Overall Width | 0.76 m | 0.76 m | 0.76 m |
| Overall Height | 1.64 m | 1.81 m | 1.99 m |
| Platform Size | 0.93 × 0.70 m | 0.93 × 0.70 m | 0.93 × 0.70 m |
| Ground Clearance | 0.04 m | 0.04 m | 0.04 m |
| Wheelbase | 1.23 m | 1.23 m | 1.23 m |
| Drive Motor | 2 × 24VDC / 0.4 kW | ||
| Lift Motor | 24VDC / 2 kW | ||
| Travel Speed (Stowed) | 4.0 km/h | ||
| Travel Speed (Raised) | 1.1 km/h | ||
| Lift Speed | 20/18 sec | 22/19 sec | 24/21 sec |
| Battery | 2 × 12V / 120Ah | ||
| Charger | 24V / 10A | ||
| Max Climbing Ability | 25% | ||
| Working Angle | 1.5° | ||
| Weight | 642 kg | 662 kg | 682 kg |
