Shield Brand GDJ5120XFB Gila Monster Armored Anti-Riot Vehicle
Overview of the vehicle

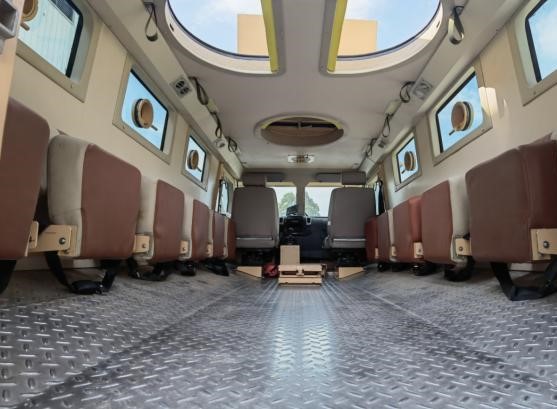

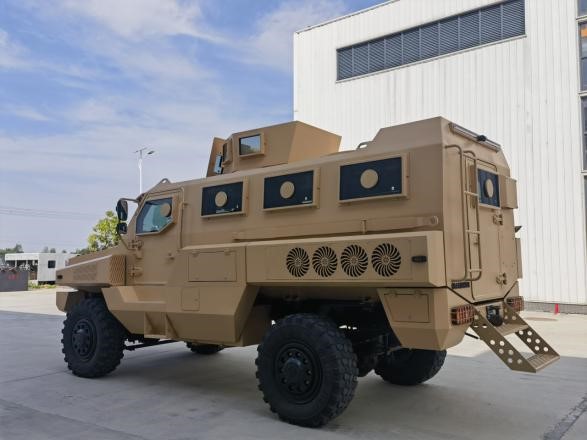

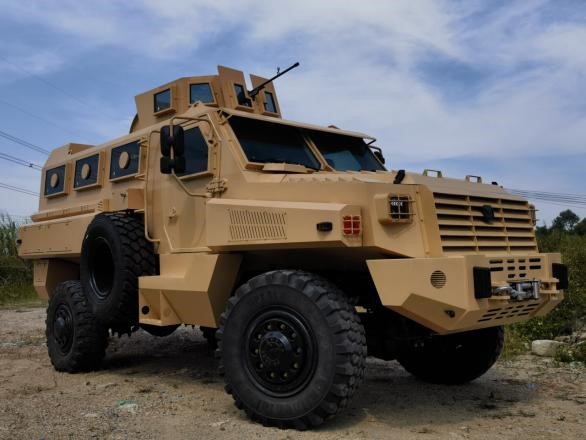

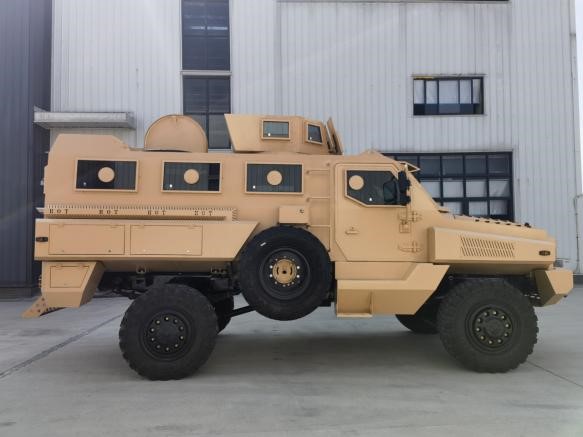

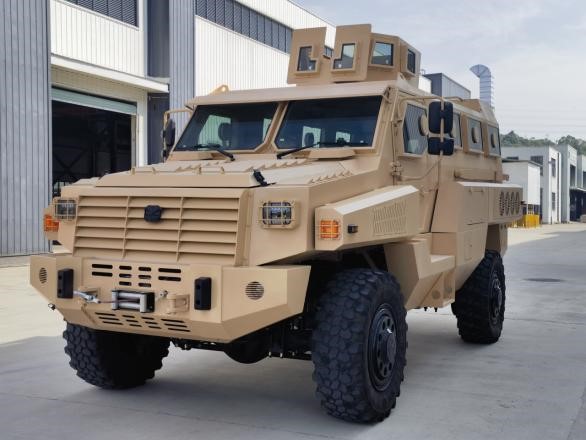

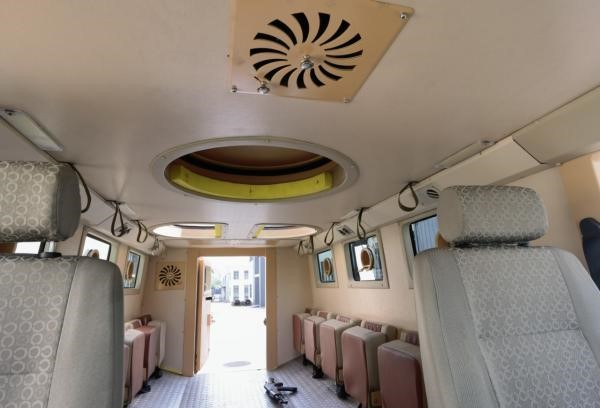

The Shield brand GDJ5120XFB Gila monster armored anti-riot vehicle is modified from a domestic special off-road chassis, with a maximum total mass of up to 12 tons. The vehicle's appearance adopts the most popular armored vehicle design in the world. The body is made of imported bulletproof materials and adopts an overlapping bulletproof structure design to ensure the vehicle's protective performance. The vehicle's bulletproof performance meets both EU EN1522 FB6 and NATO 4569 I level of bulletproof requirements. The height of the carriage floor from the ground is more than 1.1 meters, and combined with the inverted trapezoidal carriage floor, the car has certain lightning protection capabilities. The center-mounted tailgate at the rear of the car, combined with the face-to-face folding seat layout in the rear compartment, ensures that passengers can quickly get in and out of the vehicle. The vehicle is equipped with 2 front and passenger seats in the front row and 12 side-folding seats in the rear row. The vehicle can carry 14 combat team members to meet the needs of transporting a large number of troops. The standard Cummins 5.9-liter L6 supercharged diesel engine can output 210 horsepower and 700Nm of high torque, making the vehicle powerful and with a top speed of 110km/h. The electronically controlled part-time four-wheel drive system, combined with the 365mm wide military large-size off-road tires, makes the vehicle superior in off-road performance. The chassis of this armored anti-riot vehicle can be equipped with left-hand drive or right-hand drive to meet the requirements of traffic regulations in different countries. The Gila Monster armored riot vehicle is suitable for military, police, border defense and other departments to perform tasks such as troop delivery, anti-terrorism and stability maintenance, border patrol, anti-drug arrest and other tasks.

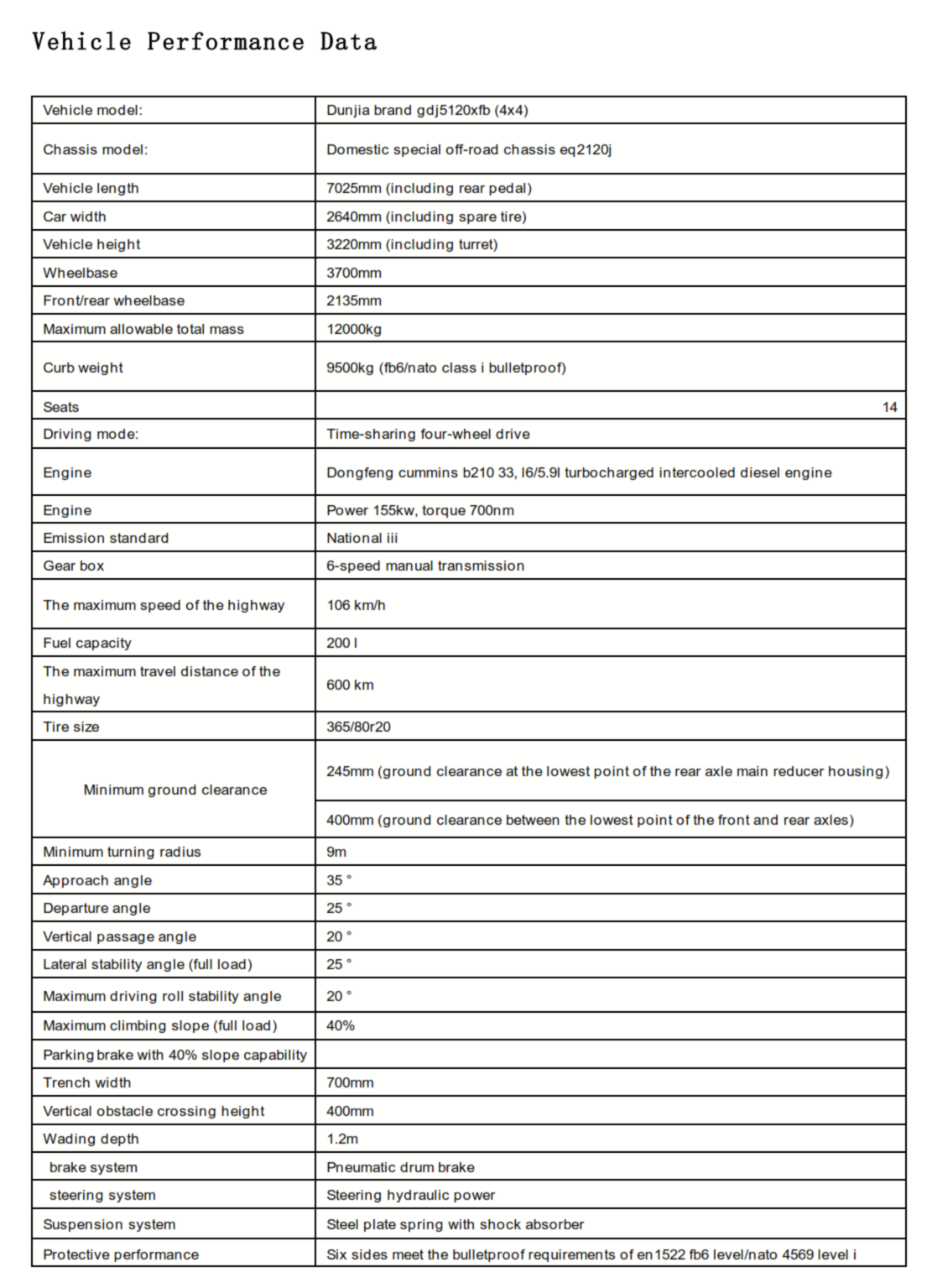

Vehicle performance data
|
Vehicle model: |
Dunjia brand GDJ5120XFB (4x4) |
|
Chassis model: |
Domestic special off-road chassis
EQ2120J |
|
Vehicle length |
7025mm (including rear pedal) |
|
Car width |
2640mm (including spare tire) |
|
Vehicle height |
3220mm (including turret) |
|
Wheelbase |
3700mm |
|
Front/rear wheelbase |
2135mm |
|
Maximum allowable total mass |
12000Kg |
|
Curb weight |
9500Kg (FB6/NATO Class I
bulletproof) |
|
seats |
14 |
|
Driving mode: |
time-sharing four-wheel drive |
|
ingine |
Dongfeng Cummins B210 33, L6/5.9L
turbocharged intercooled diesel engine |
|
ingine |
Power 155kw, torque 700Nm |
|
Emission Standard |
National III |
|
gear box |
6-speed manual transmission |
|
The maximum speed of the highway |
106 km/h |
|
Fuel capacity |
200 L |
|
The maximum travel distance of the
highway |
600 km |
|
Tire size |
365/80R20 |
|
Minimum ground clearance |
245mm (ground clearance at the
lowest point of the rear axle main reducer housing) |
|
400mm (ground clearance between
the lowest point of the front and rear axles) |
|
|
Minimum turning radius |
9m |
|
Approach angle |
35 ° |
|
Departure angle |
25 ° |
|
Vertical passage angle |
20 ° |
|
Lateral stability angle (full
load) |
25 ° |
|
Maximum driving roll stability
angle |
20 ° |
|
Maximum Climbing Slope (Full Load) |
40% |
|
Parking brake with 40% slope
capability |
|
|
Trench width |
700mm |
|
Vertical obstacle crossing height |
400mm |
|
Wading depth |
1.2m |
|
brake system |
Pneumatic drum brake |
|
steering system |
Steering hydraulic power |
|
Suspension system |
steel plate spring with shock
absorber |
|
Protective performance |
Six sides meet the bulletproof
requirements of EN1522 FB6 level/NATO 4569 level I |

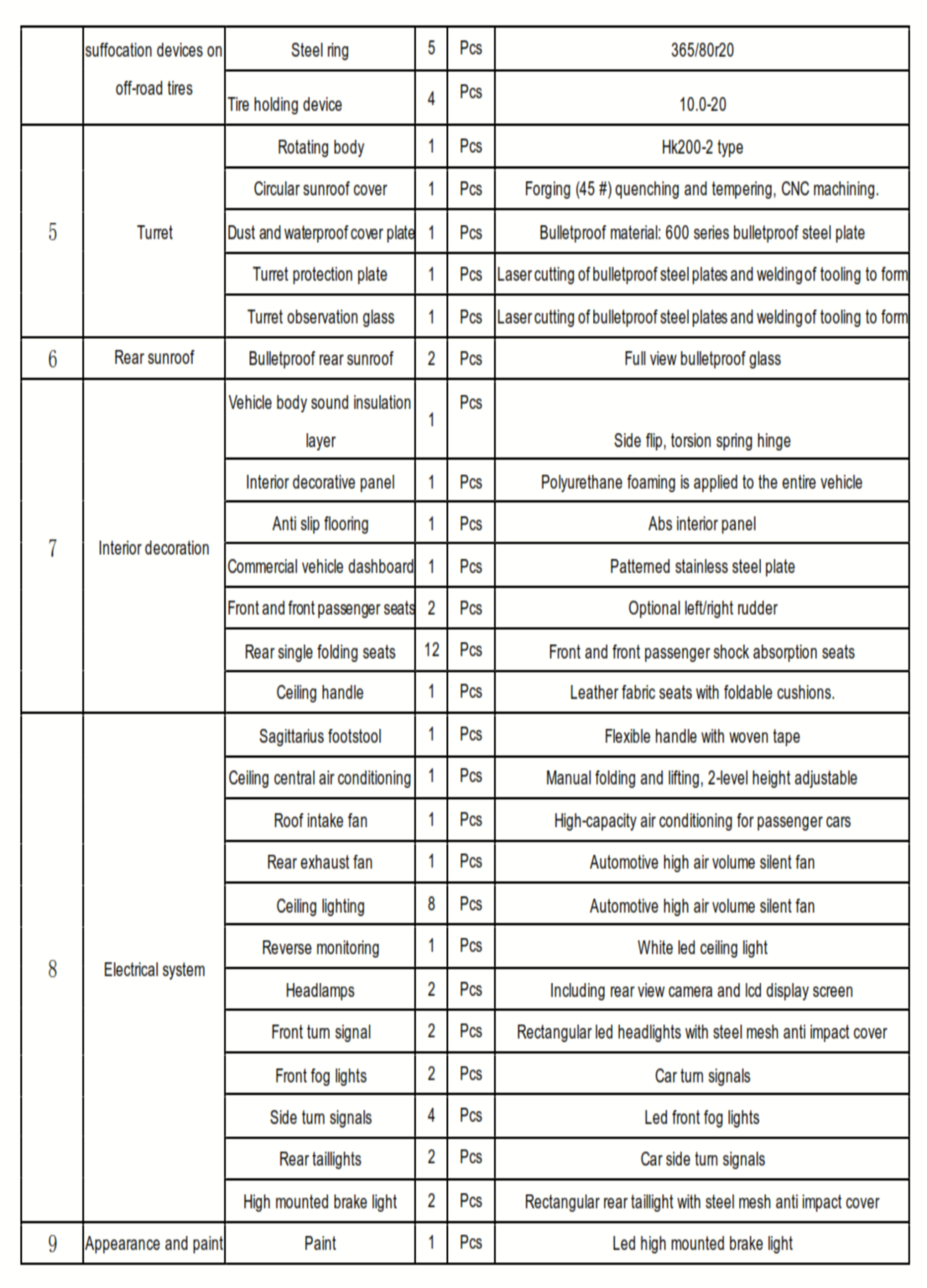

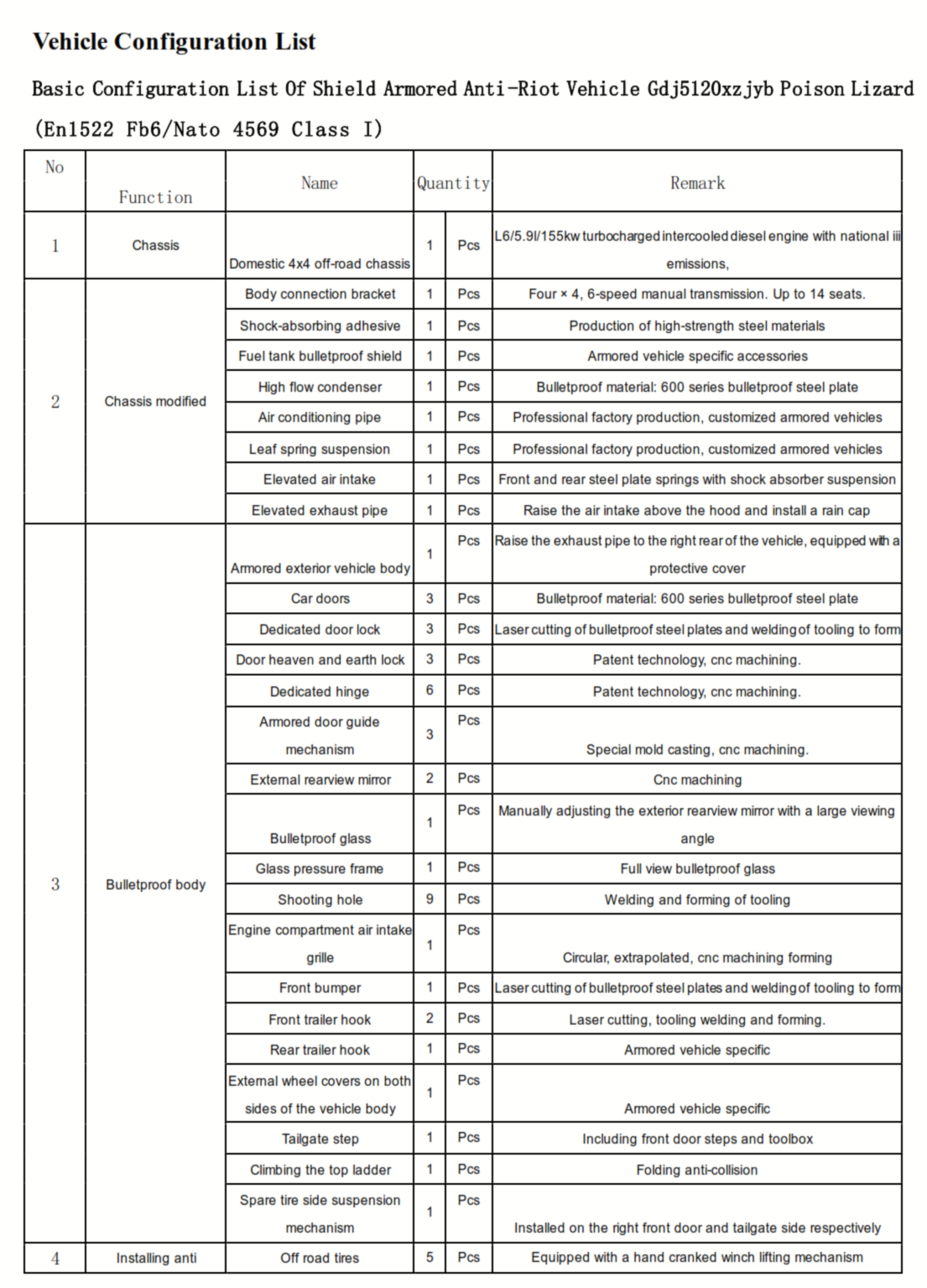

Vehicle Configuration List
Basic Configuration List of Shield Armored Anti iot Vehicle GDJ5120XZJYB
Poison Lizard (EN1522 FB6/NATO 4569 Class I)
|
No |
Function |
Name |
Quantity |
Remark |
|
|
|
|
||||
|
1 |
Chassis |
Domestic 4x4 Off-Road Chassis |
1 |
Pcs |
L6/5.9L/155kw Turbocharged
Intercooled Diesel Engine With National III Emissions, |
|
2 |
Chassis Modified |
Body Connection Bracket |
1 |
Pcs |
Four × 4, 6-Speed Manual Transmission.
Up To 14 Seats. |
|
Shock-Absorbing Adhesive |
1 |
Pcs |
Production Of High-Strength
Steel Materials |
||
|
Fuel Tank Bulletproof Shield |
1 |
Pcs |
Armored Vehicle Specific
Accessories |
||
|
High Flow Condenser |
1 |
Pcs |
Bulletproof Material: 600
Series Bulletproof Steel Plate |
||
|
Air Conditioning Pipe |
1 |
Pcs |
Professional Factory
Production, Customized Armored Vehicles |
||
|
Leaf Spring Suspension |
1 |
Pcs |
Professional Factory Production, Customized Armored
Vehicles |
||
|
Elevated Air Intake |
1 |
Pcs |
Front And Rear Steel Plate Springs With Shock Absorber
Suspension |
||
|
Elevated Exhaust Pipe |
1 |
Pcs |
Raise The Air Intake Above The Hood And Install A Rain
Cap |
||
|
3 |
Bulletproof Body |
Armored Exterior Vehicle Body |
1 |
Pcs |
Raise The Exhaust Pipe To The
Right Rear Of The Vehicle, Equipped With A Protective Cover |
|
Car Doors |
3 |
Pcs |
Bulletproof Material: 600
Series Bulletproof Steel Plate |
||
|
Dedicated Door Lock |
3 |
Pcs |
Laser Cutting Of Bulletproof
Steel Plates And Welding Of Tooling To Form |
||
|
Door Heaven And Earth Lock |
3 |
Pcs |
Patent Technology, CNC Machining. |
||
|
Dedicated Hinge |
6 |
Pcs |
Patent Technology, CNC Machining. |
||
|
Armored Door Guide Mechanism |
3 |
Pcs |
Special Mold Casting, CNC Machining. |
||
|
External Rearview Mirror |
2 |
Pcs |
CNC Machining |
||
|
Bulletproof Glass |
1 |
Pcs |
Manually Adjusting The Exterior
Rearview Mirror With A Large Viewing Angle |
||
|
Glass Pressure Frame |
1 |
Pcs |
Full View Bulletproof Glass |
||
|
Shooting Hole |
9 |
Pcs |
Welding And Forming Of Tooling |
||
|
Engine Compartment Air Intake
Grille |
1 |
Pcs |
Circular, Extrapolated, CNC Machining
Forming |
||
|
Front Bumper |
1 |
Pcs |
Laser Cutting Of Bulletproof
Steel Plates And Welding Of Tooling To Form |
||
|
Front Trailer Hook |
2 |
Pcs |
Laser Cutting, Tooling Welding
And Forming. |
||
|
Rear Trailer Hook |
1 |
Pcs |
Armored Vehicle Specific |
||
|
External Wheel Covers On Both
Sides Of The Vehicle Body |
1 |
Pcs |
Armored Vehicle Specific |
||
|
Tailgate Step |
1 |
Pcs |
Including Front Door Steps And
Toolbox |
||
|
Climbing The Top Ladder |
1 |
Pcs |
Folding Anti-Collision |
||
|
Spare Tire Side Suspension
Mechanism |
1 |
Pcs |
Installed On The Right Front
Door And Tailgate Side Respectively |
||
|
4 |
Installing Anti Suffocation Devices On
Off-Road Tires |
Off Road Tires |
5 |
Pcs |
Equipped With A Hand Cranked
Winch Lifting Mechanism |
|
Steel Ring |
5 |
Pcs |
365/80R20 |
||
|
Tire Holding Device |
4 |
Pcs |
10.0-20 |
||
|
5 |
Turret |
Rotating Body |
1 |
Pcs |
HK200-2 Type |
|
Circular Sunroof Cover |
1 |
Pcs |
Forging (45 #) Quenching And
Tempering, CNC Machining. |
||
|
Dust And Waterproof Cover Plate |
1 |
Pcs |
Bulletproof Material: 600
Series Bulletproof Steel Plate |
||
|
Turret Protection Plate |
1 |
Pcs |
Laser Cutting Of Bulletproof
Steel Plates And Welding Of Tooling To Form |
||
|
Turret Observation Glass |
1 |
Pcs |
Laser Cutting Of Bulletproof
Steel Plates And Welding Of Tooling To Form |
||
|
6 |
Rear Sunroof |
Bulletproof Rear Sunroof |
2 |
Pcs |
Full View Bulletproof Glass |
|
7 |
Interior Decoration |
Vehicle Body Sound Insulation
Layer |
1 |
Pcs |
Side Flip, Torsion Spring Hinge |
|
Interior Decorative Panel |
1 |
Pcs |
Polyurethane Foaming Is Applied
To The Entire Vehicle |
||
|
Anti Slip Flooring |
1 |
Pcs |
ABS Interior Panel |
||
|
Commercial Vehicle Dashboard |
1 |
Pcs |
Patterned Stainless Steel Plate |
||
|
Front And Front Passenger Seats |
2 |
Pcs |
Optional Left/Right Rudder |
||
|
Rear Single Folding Seats |
12 |
Pcs |
Front And Front Passenger Shock
Absorption Seats |
||
|
Ceiling Handle |
1 |
Pcs |
Leather Fabric Seats With
Foldable Cushions. |
||
|
8 |
Electrical System |
Sagittarius Footstool |
1 |
Pcs |
Flexible Handle With Woven Tape |
|
Ceiling Central Air
Conditioning |
1 |
Pcs |
Manual Folding And Lifting,
2-Level Height Adjustable |
||
|
Roof Intake Fan |
1 |
Pcs |
High Capacity Air Conditioning
For Passenger Cars |
||
|
Rear Exhaust Fan |
1 |
Pcs |
Automotive High Air Volume
Silent Fan |
||
|
Ceiling Lighting |
8 |
Pcs |
Automotive High Air Volume
Silent Fan |
||
|
Reverse Monitoring |
1 |
Pcs |
White LED Ceiling Light |
||
|
Headlamps |
2 |
Pcs |
Including Rear View Camera And LCD
Display Screen |
||
|
Front Turn Signal |
2 |
Pcs |
Rectangular LED Headlights With
Steel Mesh Anti Impact Cover |
||
|
Front Fog Lights |
2 |
Pcs |
Car Turn Signals |
||
|
Side Turn Signals |
4 |
Pcs |
LED Front Fog Lights |
||
|
Rear Taillights |
2 |
Pcs |
Car Side Turn Signals |
||
|
High Mounted Brake Light |
2 |
Pcs |
Rectangular Rear Taillight With
Steel Mesh Anti Impact Cover |
||
|
9 |
Appearance And Paint |
Paint |
1 |
Pcs |
LED High Mounted Brake Light |
